Dual Use in Day and Night Outdoor Infrared Thermal Riflescope for Long Range Hunting

FOB Reference Price:Get Latest Price
US $3,519-7,996 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Guide
Model Number:
Guide TS Series
Size:
49*43.5*29.7mm
Weight:
≤630g
Type:
Rifle Scope
Magnification:
x2.3
Effective Visual Distance:
1000m
Detector:
800*600
Pitch:
17μm
Focal Length:
70mm
View Finder:
OLED
FOV:
8.8°x7.1°
Wifi:
Yes
Compass:
Yes
Reticle:
Yes
Picture In Picture:
Yes
Polarity:
White hot, black hot, red hot, green hot, etc
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
We take every product seriously. Usually we put the product into the packing box.Then, we will use the air bag to protect it.
Port
Wuhan

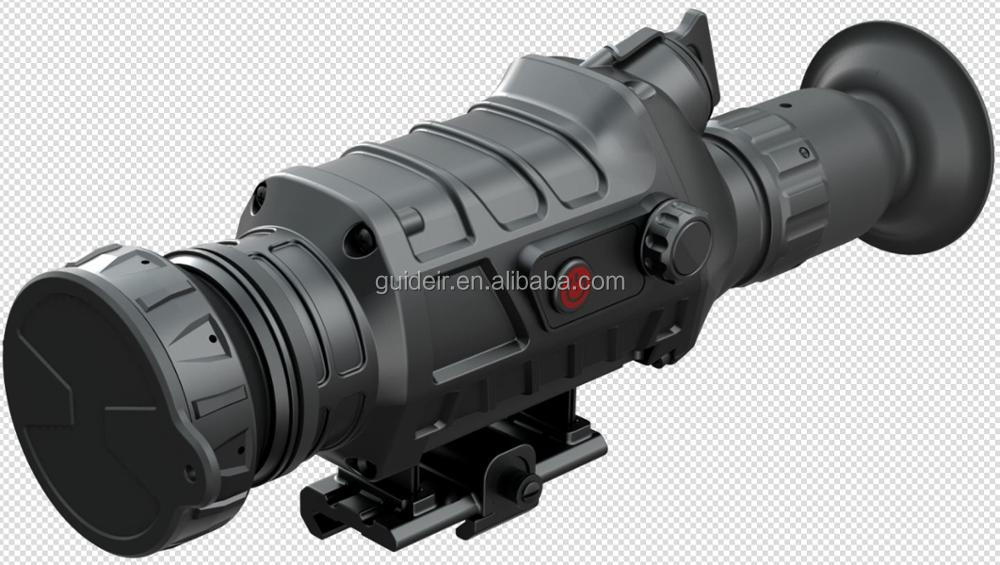

Dual Use in Day and Night Outdoor Infrared Thermal Riflescope for Long Range Hunting

Product Description

 TS series are Guide’s newest thermal night vision rifle scope. It features a high frame rate for fluid images when observing dynamic objects. The battery can be inserted either way for ergonomic use at night. TS series really gives hunters and outdoor enthusiasts the ability to see clearly in total darkness.



Product Overviews


Main features:

1) High-resolution uncooled infrared detector;

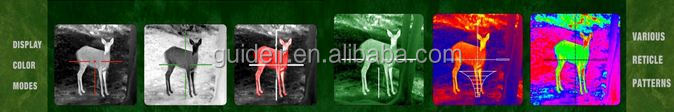

2) OLED color eyepiece display, capable of displaying images in various color modes;

3) Low power design, a single battery can continuously power ;

4) Ultimate easy-to-use hand wheel, characterized by simple and convenient operation;

5) No positive and negative circuit design is adopted to protect the battery from being assembled negatively, and the thermal imager can be used normally when the battery is assembled positively or negatively in the battery compartment;

6) Picture in picture image magnification, improving the observing and aiming efficiency;

7) Light leak-proof eyepiece design, good concealment;

8)Good IP67 water resistance, high reliability and firm structure.

Specifications



TypeTS445TS835TS870TS8100
Detector
Resolution400×300800×600800×600800×600
Pitch25μm17μm17μm17μm
Focal Length45mm35mm70mm100mm
FOV12°×9°17.6°×14°8.8°×7.1°6.2°×4.9°
Magnification×1.3×1.3×2.3×2.3
View FinderOLEDOLEDOLEDOLED
Wi-Fi×
Compass×
InterfaceRS232 VideoMicro USB Video
Operation Distance
Human 1.8m×0.5m450m500m1000m1400m
ReticleYes
Picture In PictureYes
PolarityWhite hot, black hot, red hot, green hot, etc
Brightness/ContrastAuto
Environment Parameters
Working TemperatureStandard: -20ºC ~ 50ºC  Option: -40ºC ~ 60ºC
Storage Temperature-40ºC~65ºC
EncapsulationIP67
Trade Shows

Guide Infrared Co., Ltd, a high-tech listed company, was founded in 1999. It takes the lead in R&D, production and sales of infrared thermal imaging system, large-scale optoelectronic system, and defense system. The company's total market value is over 20 billion USD. Its staff is over 2500, among them, about 1000  are R&D personnel. Its sales and marketing network has been set globally in more than 70 countries and regions. And it also established an European subsidiary in Belgium.



Guide Infrared products are widely used in military and civil application, electric power, metallurgy, petrochemical, construction, firefighting, law enforcement, inspection & quarantine, security and surveillance, ADAS night vision system and so on.

 1__

Workshop View

 workshop

FAQ



1.You are factory or trading Company?

We are Top 3 manufacturer in Infrared industry in China, with full R&D, factory, sales system. You are welcomed to visit our laboratory and factory.



2.Could your company modify the standard product depends on my request?

Our company is specialized in researching and designing various of special purpose infrared equipment.We can provide the product that meet your personalized demand.



3. Could you provide certification that we need?

 We almost passed all the certification in our field, such as Rohs, CE, ISO....Any more special certification you need, please let us know. We will do it for you.



4. How about the after-sale service?

All our product warranty for 24 month. When the machine need return to our factory for repair, we will take charge of the freight for return and resend.
