outdoor and hunting infrared googles

FOB Reference Price:Get Latest Price
US $1,599-1,999 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Guide
Model Number:
IR510 Series
Name:
Handheld Monocular Thermal camera
Detector Type:
400*300
Focus:
19mm,F1.0
Frame:
PAL25Hz/ NTSC 50Hz
Digital Zoom:
2x;4x
Tracing:
Hot spot tracing
Color palette:
Black hot,white hot,red hot
USB interface:
Charging,data transfer
working temp:
-10℃~50℃
Encapsulation:
IP66,1m drop
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
IR510 Standard package: IR510 camera with internal battery,power
supply,USB cable,wrist strip,soft drawstring bag,user manual,packing case
Port
Wuhan

thermal camera outdoor hunting infrared monoculars Guide IR510P



Product Description

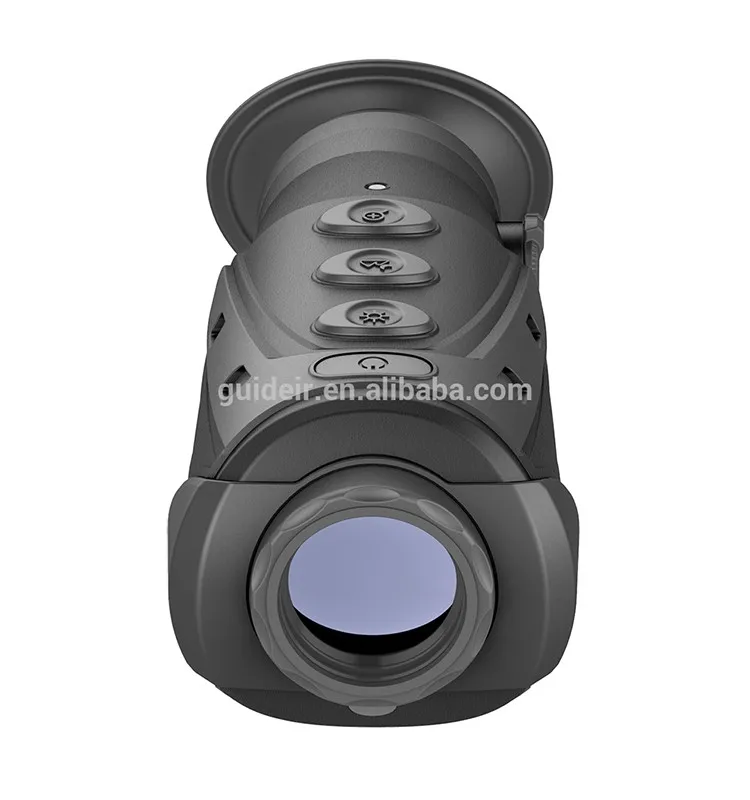

  The new handheld thermal imaging monocular IR-510 P is a compact device that has been designed to observe areas, irrespective of available light, for human or wildlife presence. It is also possible to remotely check buildings and vehicles.

Whether you are viewing through adverse weather, light fog, smoke or obstacles such as light foliage and bushes, the IR-510 P can provide a reliable detection making it ideal for wildlife observation, search and rescue or security and surveillance applications.
The monocular has a 400 x 300 pixels passive uncooled detector and a 19 mm fixed focus lens.

The IR-510 P has a color display with diopter correction and has a 2x and 4x digital zoom. Three color schemes allow the user to choose the optimum representation in different circumstances.

 Features

·  Lightest and shortest camera in the same class

·  The latest display technology significantly increases image quality

·  power solutions for longer usage: Inner Li-on battery for 5 hours

·  Standard analog video output for 50 Hz data with no image lag

·  Standby mode

·  IP66 and 1m drop to meet the requirement for outdoor environment

·  Micro USB for charging, downloadfing images




Specifications



Detector

Detector Type

400×300@25μm

Spectral Range

8μm~14μm

Lens

Focus

19mm, F1.0

Focusing

Fixed focus, athermalizing

Screen

Colorful LCOS

Viewfinder

Monocular, diopter adjustable


Frame

25Hz/50Hz

Digital Zoom

2×,4×

Tracing

Hot spot tracing

Color Palette

Black hot, white hot, red hot

Image Format

JPG

Wi-Fi

Can read photo with Wi-Fi

Configuration

Laser point

Power

Battery

Internal Li-ion battery

Working Time

≥5h

Adapter

Standard USB power adapter, max 10W

Interface

USB

Charging, data transfer

Video Output

Analog video output, PAL/NTSC alternative

Environment Characteristics

Working Temperature

-10~60

Storage Temperature

-30~60

Humidity

10%~95%

Shock

25G, IEC68-2-29, GB

Encapsulation

IP66

Drop Test

1m drop

Physical Parameter

Weight

350g

Size

160mm×67mm×62mm





Specifications are subject to change without prior notice


 Tradeshow

1__

Workshop

workshop

FAQ



Q1:Compare to other companies, what superiorities do you have?

A1: We have independent intellectual property rights of infrared detector technology of thermal infrared imaging, we are specialized at manufacturing thermal imaging camera & system solution.


Q2: Do you accept OEM/ODM?
A2: Yes! If you have OEM or ODM plans , highly welcome to negotiate with our sales person, we can provide you guaranteed products, and pretty competitive prices.

Q3: Where is your loading port?
A3: Wuhan; Shanghai; Shenzhen;
