thermal camera for hunting or monitoring with wifi

FOB Reference Price:Get Latest Price
US $1,399-2,199 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Guide
Model Number:
Guide IR510P
Name:
Handheld Monocular Thermal camera
Detector Type:
400*300
Focus:
19mm,F1.0
Frame:
PAL25Hz/ NTSC 50Hz
Digital Zoom:
2x;4x
Tracing:
Hot spot tracing
Color palette:
Black hot,white hot,red hot
USB interface:
Charging,data transfer
working temp:
-10℃~50℃
Encapsulation:
IP66,1m drop
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
IR510 Standard package: IR510 camera with internal battery,power
supply,USB cable,wrist strip,soft drawstring bag,user manual,packing case
Port
Wuhan
Lead Time :
2days after the order is confirmed and payment is received

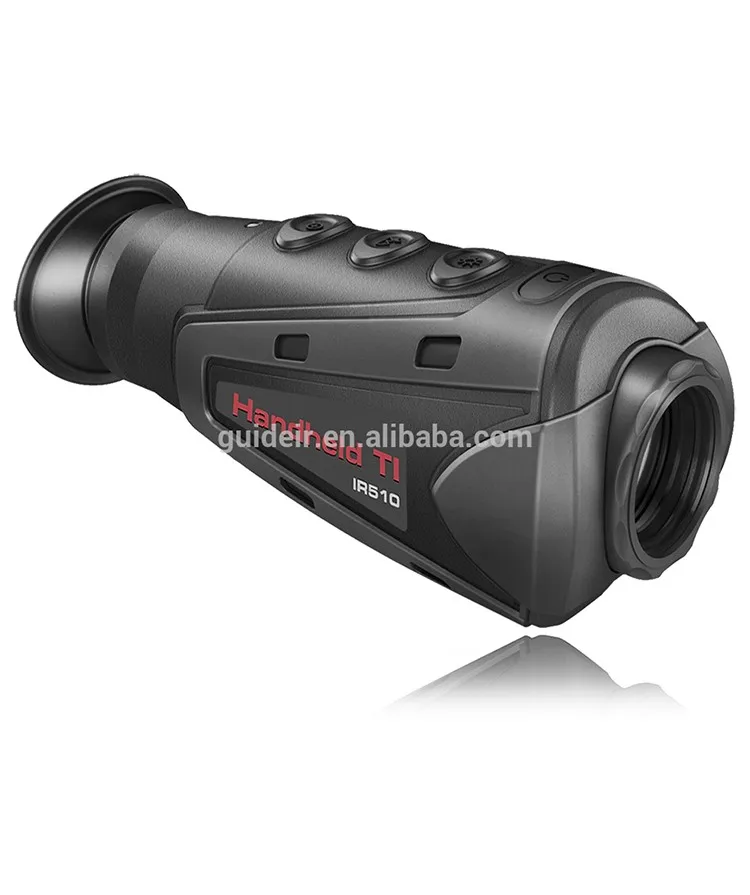

thermal camera for hunting or monitoring with wifi  Guide IR510P



Product Description





Features:

- Image record & Wi-Fi image transfer

The upgraded image record and Wi-Fi image transfer capabilities enable IR510P keep the most unforgettable or most important instant into eternity and share the saved images easily

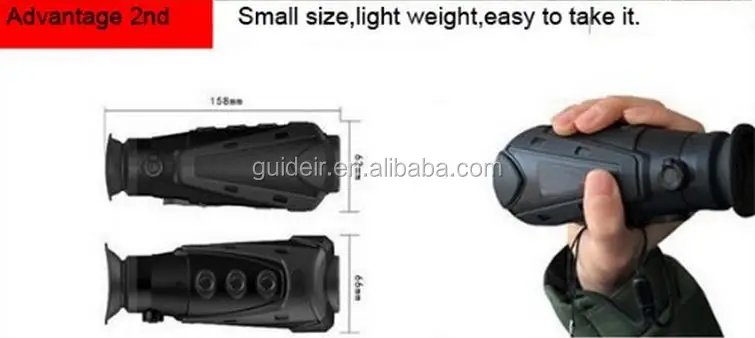

- Lightweight and pocket size

With its small pocket size and agronomical design, the IR510P weights only 350g , which allows you to scan vast areas for long period of time without arm fatigue

- Easy Operation

With straightforward on-hand operation using only four buttons, the IR510P assists your vision without adding complexity

- High-tech LCOS Display

The latest in next generation LCD display LCOS offers superior image quality



Application:

•Hunting  •Law enforcement   •Outdoor  •Patrol   •Search & Rescue   •Personal Security



Specifications



Detector

Detector Type

400×300@25μm

Spectral Range

8μm~14μm

Lens

Focus

19mm, F1.0

Focusing

Fixed focus, athermalizing

Screen

Colorful LCOS

Viewfinder

Monocular, diopter adjustable


Frame

25Hz/50Hz

Digital Zoom

2×,4×

Tracing

Hot spot tracing

Color Palette

Black hot, white hot, red hot

Image Format

JPG

Wi-Fi

Can read photo with Wi-Fi

Configuration

Laser point

Power

Battery

Internal Li-ion battery

Working Time

≥5h

Adapter

Standard USB power adapter, max 10W

Interface

USB

Charging, data transfer

Video Output

Analog video output, PAL/NTSC alternative

Environment Characteristics

Working Temperature

-10~60

Storage Temperature

-30~60

Humidity

10%~95%

Shock

25G, IEC68-2-29, GB

Encapsulation

IP66

Drop Test

1m drop

Physical Parameter

Weight

350g

Size

160mm×67mm×62mm








Company Information

 Founded in 2016 with a registered capital of 60 million CNY, Wuhan Guide Sensmart Tech Co., Ltd is a wholly-owned subsidiary of Wuhan Guide Infrared Co., Ltd. ("Guide Infrared"). It is specialized in the development, manufacturing and sales of commercial thermal imaging systems.
Building on the fully integrated technological capabilities from core components up to complex systems of its mother company Wuhan Guide Infrared, Sensmart can provide highly performant thermal imaging products and solutions to industry, offering the best user experience and service.
Nowadays Guide Infrared products are widely used in industrial testing, security monitoring, firefighting and rescue operations, law enforcement, industrial automation, smart home applications and consumer electronics.
Guide Sensmart is committed to promoting the infrared thermal imaging technology and popularizing infrared thermal imaging products in the emerging markets of civil applications. With continuous exploration and innovation Guide Infrared provides intelligent sensing solutions which expand the dimensions in which man observes the world.
Guide Infrared is leading the way into an age where infrared technology is Smart and Consumerized.
